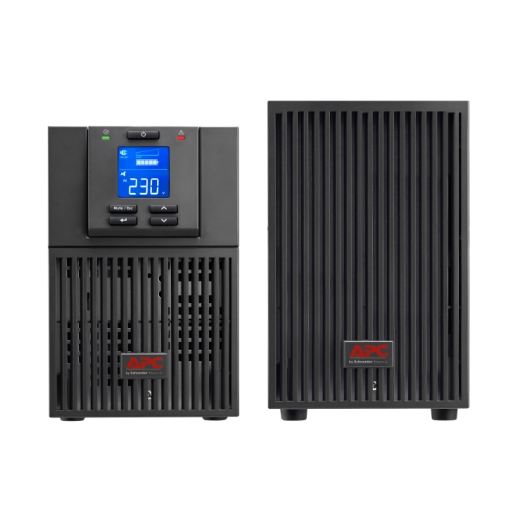

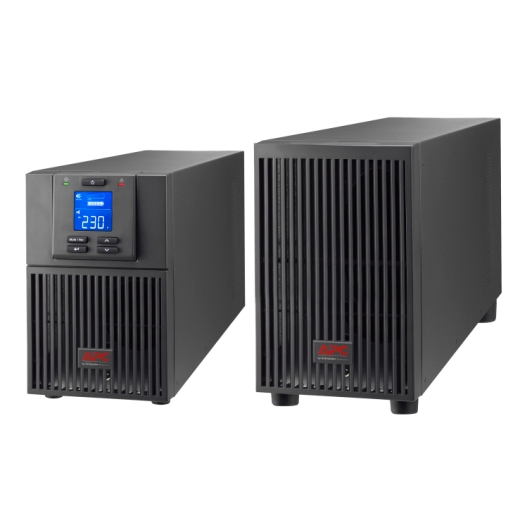

APC Easy UPS On-Line Ext. Runtime SRV 1000VA 230V with External Battery Pack and Intelligent Card Slot SRV1KIL

Brand:APC
In Stock

Sh 1,634,175

Categories: Tag: Brand:
JENGA
JENGA

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

Includes: (1) DC cable, Basic UPS signalling RS-232 cable, CD with software, Country-specific detachable power cord, USB cable, User manual

Key Features

  • Output power capacity: 800 Watts / 1.0kVA

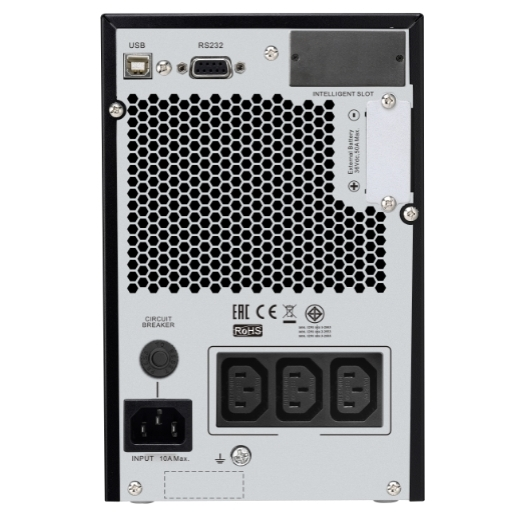

  • Output Connections: (3) IEC 60320 C13 (Battery Backup)

  • Nominal Output Voltage: 230V

  • Nominal Input Voltage: 230V

  • Input Connections: IEC 60320 C14

  • Cord Length: 1.5meters

Technical Specifications

Output

  • Max Configurable Power (Watts): 800 Watts / 1.0kVA

  • Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage

  • Efficiency at Full Load: 88.0 %

  • Output Voltage Distortion: 3 %

  • Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains

  • Other Output Voltages: 220 V, 240 V

  • Load Crest Factor: 3 : 1

  • Topology: Double conversion online

  • Waveform type: Sine wave

  • Bypass: Internal bypass (automatic and manual)

Input

  • Input frequency: 40 – 70 Hz Auto sensing

  • Input voltage range for main operations: 110 – 285 Half load, 160 – 280 Full loadV

  • Number of Power Cords: 1

  • Efficiency at Full Load: 88.0 %

  • Other Input Voltages: 220 V, 240 V

Batteries & Runtime

  • Battery type: Lead-acid battery

  • Typical recharge time: 4.5hour(s)

  • Nominal Battery Voltage: 36 V

  • Expected Battery Life (years): 3 – 5

  • Battery Charge Power (Watts): 175 Watts

  • APC

  • Easy UPS

  • UPS

Brand

APC
