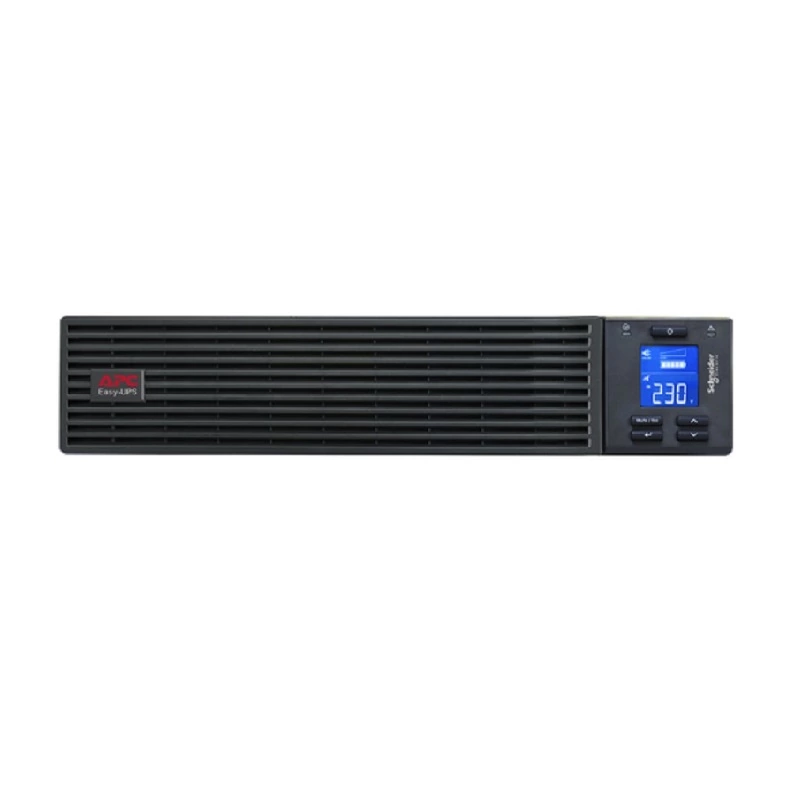

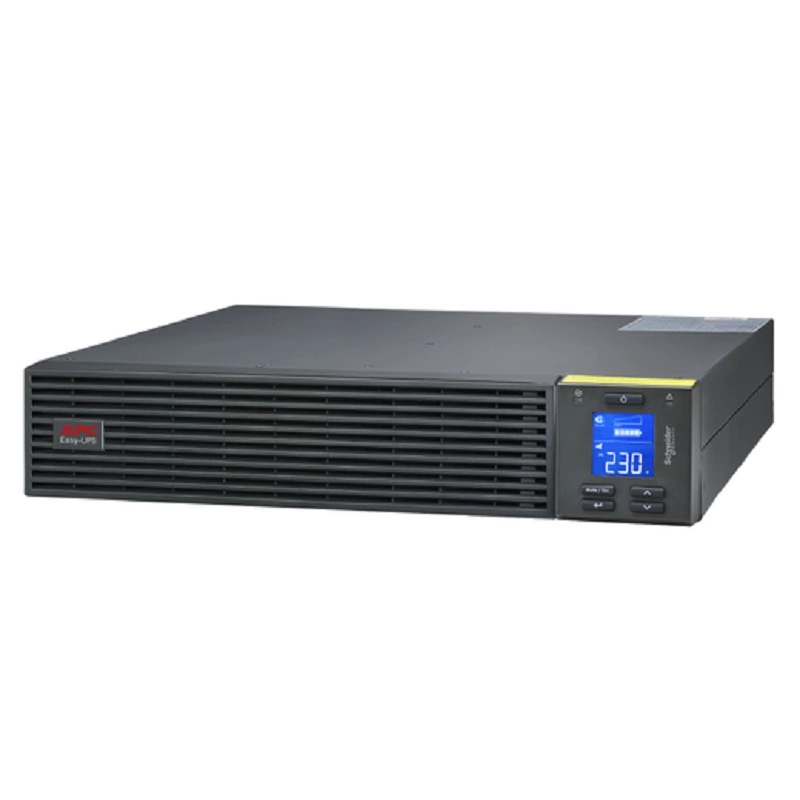

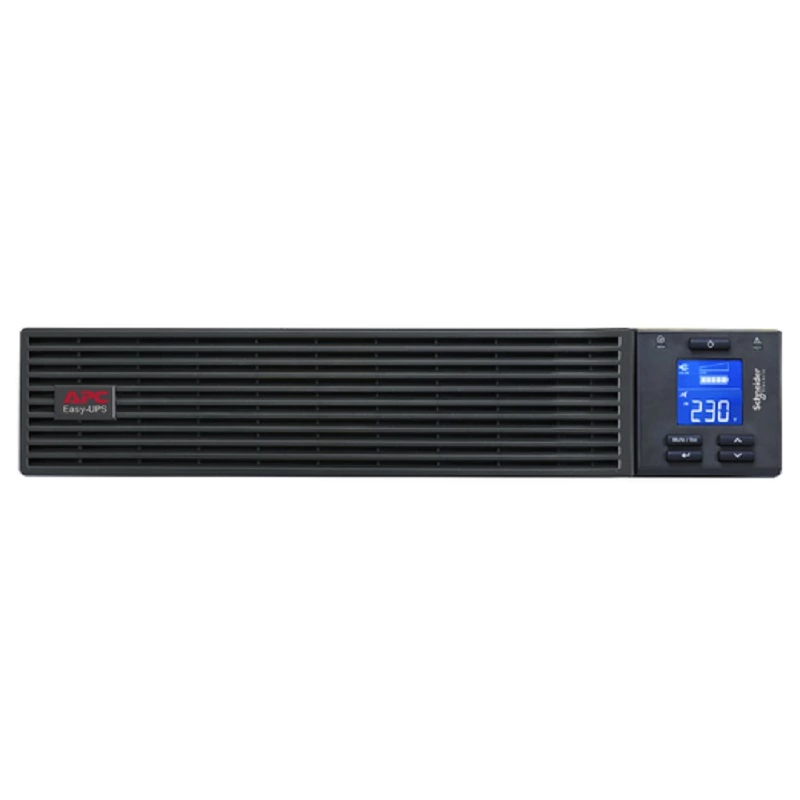

APC UPS Easy Online SRV RM 1000VA 230V with RailKit SRV1KRIRK

Features

• Output power capacity: 800 Watts/1.0kVA
• Rack Height: 2U

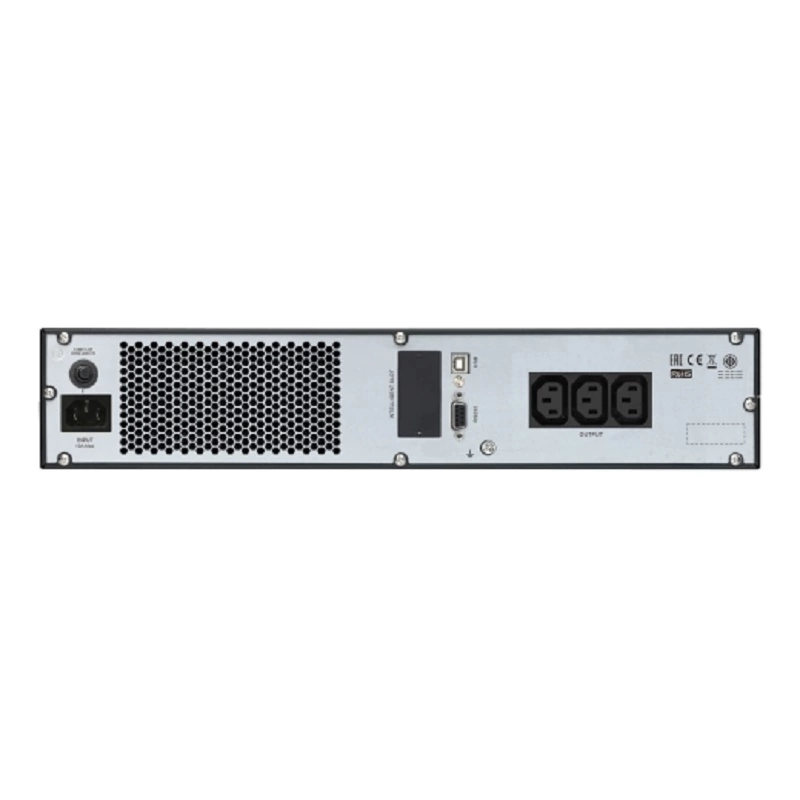

• Output Connections: (3) IEC 60320 C13 (Battery Backup)
• Nominal Output Voltage: 230V
• Nominal Input Voltage: 230V
• Input Connections: IEC 60320 C14
• Cord Length: 1.5meters

Technical Specifications

Output

• Max Configurable Power (Watts): 800 Watts / 1.0kVA
• Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage
• Efficiency at Full Load: 88.0 %
• Output Voltage Distortion: 3 %
• Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
• Other Output Voltages: 220 V, 240 V
• Load Crest Factor: 3 : 1
• Topology: Double conversion online
• Waveform type: Sine wave
• Bypass: Internal bypass (automatic and manual)

Input

• Input frequency: 40 – 70 Hz Auto sensing
• Input voltage range for main operations: 110 – 285 Half load, 160 – 280 Full loadV
• Number of Power Cords: 1
• Efficiency at Full Load: 88.0%
• Other Input Voltages: 220 V, 240 V

Batteries & Runtime

• Battery type: Lead-acid battery
• Typical recharge time: 4hour(s)
• Nominal Battery Voltage: 24 V
• Replacement Battery: APCRBCV200
• Expected Battery Life (years): 3 – 5
• Battery Charge Power (Watts): 30 Watts

Physical

• Maximum Height: 86mm, 8.6cm
• Maximum Width: 437mm, 43.7cm
• Maximum Depth: 312mm, 31.2cm
• Net Weight: 11.0kg

Communications & Management

• Interface Port(s): DB-9 RS-232, Smart-Slot, USB
• Control panel: Multifunction LCD status and control console
• Available SmartSlot™ Interface Quantity: 1
