Tronic Automatic Transfer Switch 400A

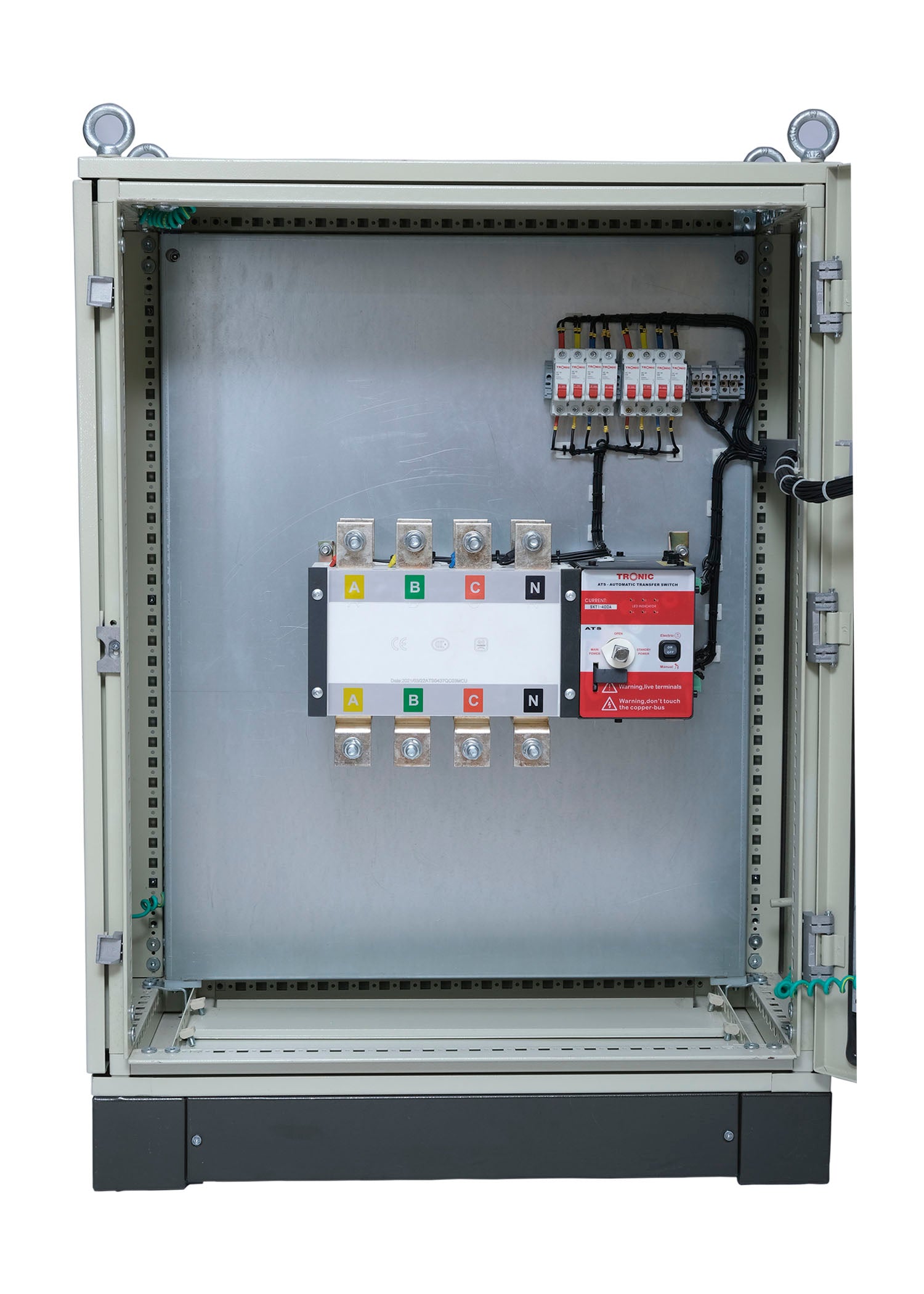

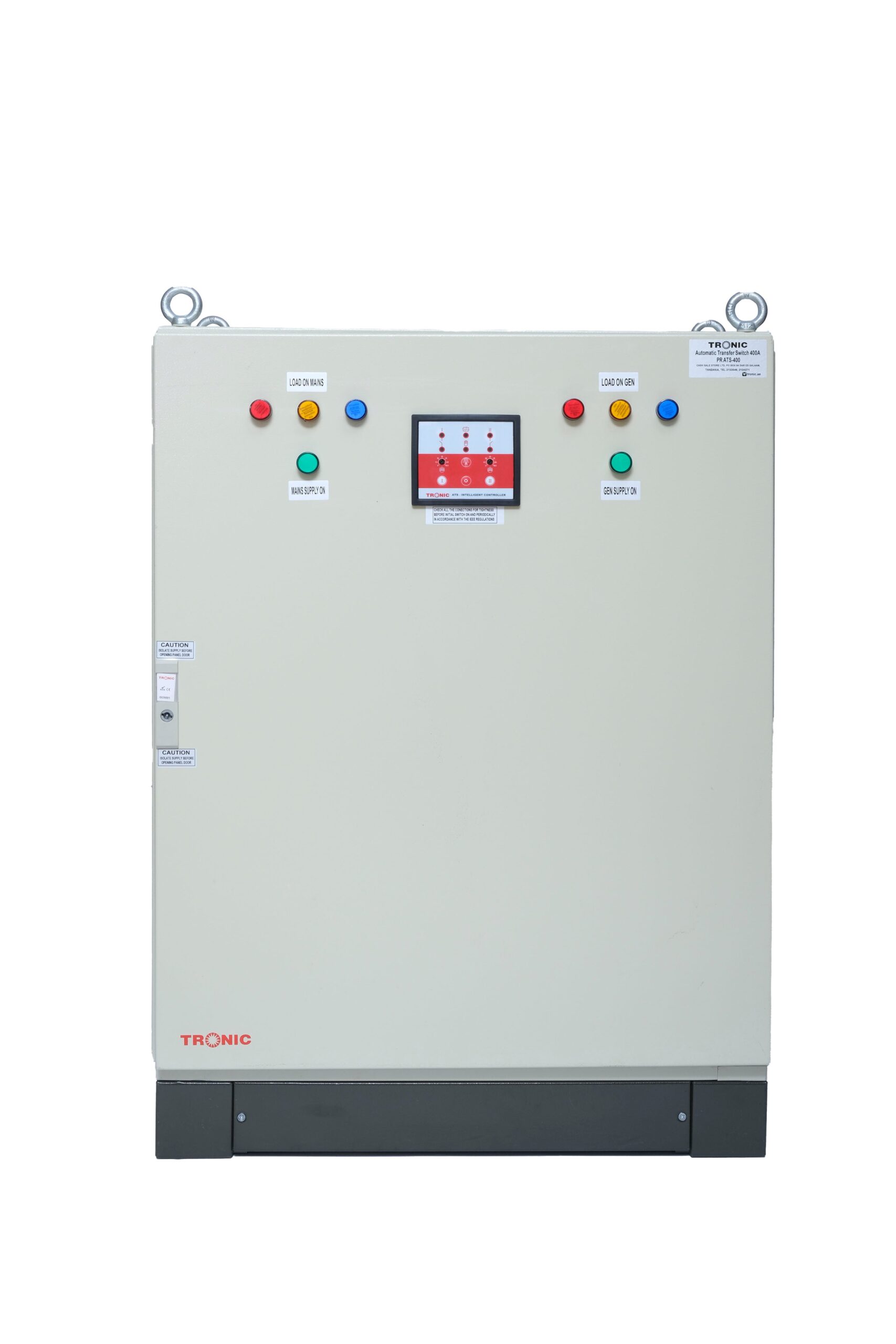

TRONIC Automatic Transfer Switch (ATS) controller uses microprocessor as its core which can precisely monitor voltage (loss of main power). The ATS will start functioning in the following circumstances; loss of power, over voltage, under voltage phase. 400A 4 pole automatic transfer switch unit which, in the event of a power outage, will automatically start a generator and transfer the load over to the Generator supply. When the Main supply returns to normal, the ATS will transfer the load back to the Main supply and shut down the generator. Additional Information Functional components A 4 pole motorised, rotary transfer switch operated by the Tronic Intelligent ATS controller Enclosure details Dimensions 800mm (length) * 1100mm (height) * 400mm (depth) Mounting Freestanding Cable entry Bottom IP Rating 55 Operation Modes Motorised Manual using pushbuttons on controller interface Automatic Unmotorised Manual by hand using rotary handle Pilot lamp indications Provided on the intelligent controller interface –> Main Supply available Gen Supply Available Load on Main Supply Load of Gen Supply Auto Operation Manual Operation Operating environment Operating temperature -20 to 45°C Operating humidity 40% Altitude <2000m asl Vibration & Gas No strong vibrations and no harmful gases that may corrode the metallic parts and damage the insultation ATS Controller specifications AC power supply 230V±30% (50Hz) DC power supply 8-35V Measured Voltage Line voltage 400V 3 Phase 4 wire Transfer Switch specifications Rated Current (In) 400A Rated insultation voltage of copper bar (Ue) 660V Rated impuls withstand voltage (Uimp) 6kV Rated operating voltage of copper bar (Ue) 400VAC Use category AC-33A Rated making capacity 10Ie Rated breaking capacity 10Ie Rated limit short-circuit current 35kA Rated operating voltage of the control power Us 220VAC
