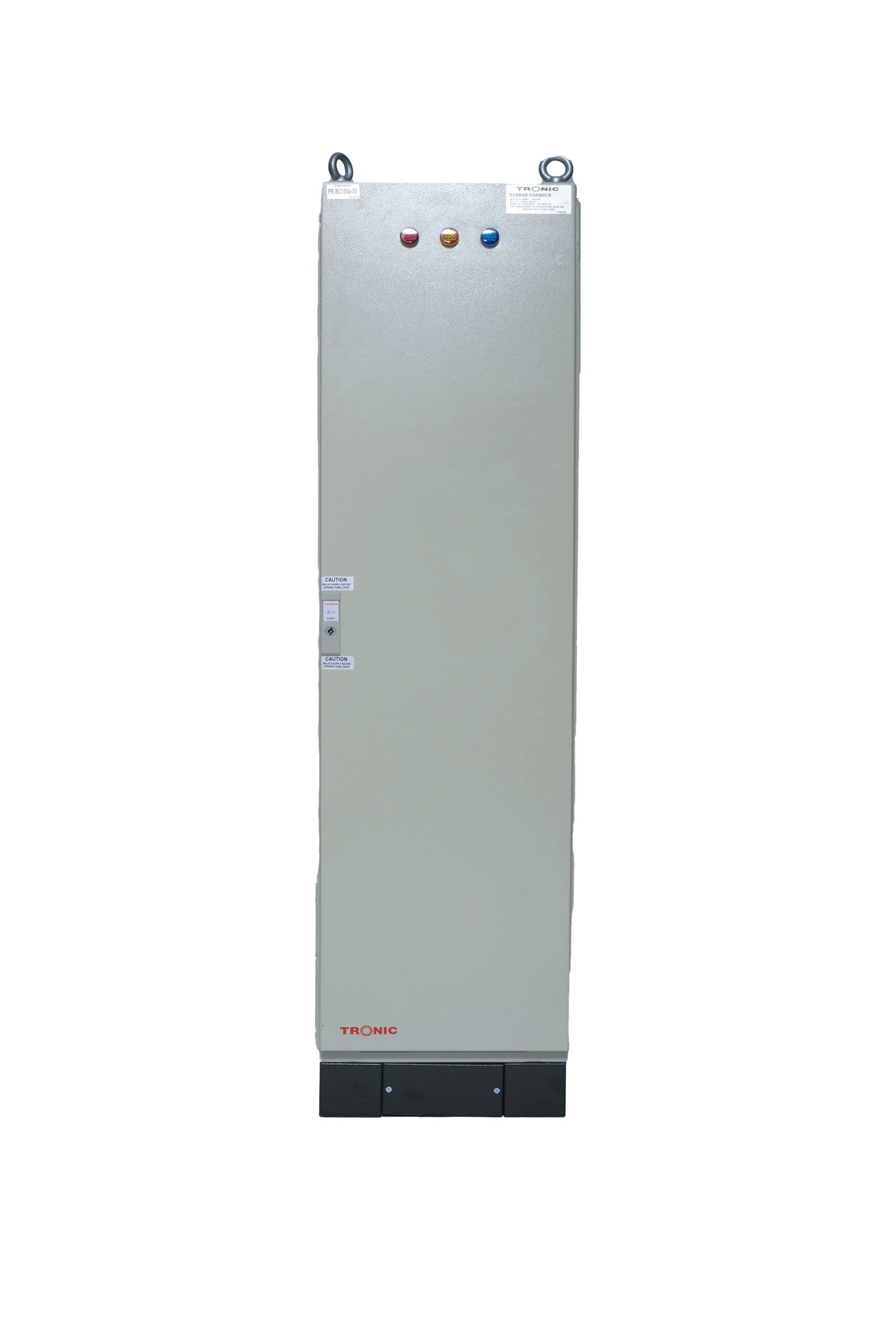

Tronic Busbar Chamber 1000A 30 Way

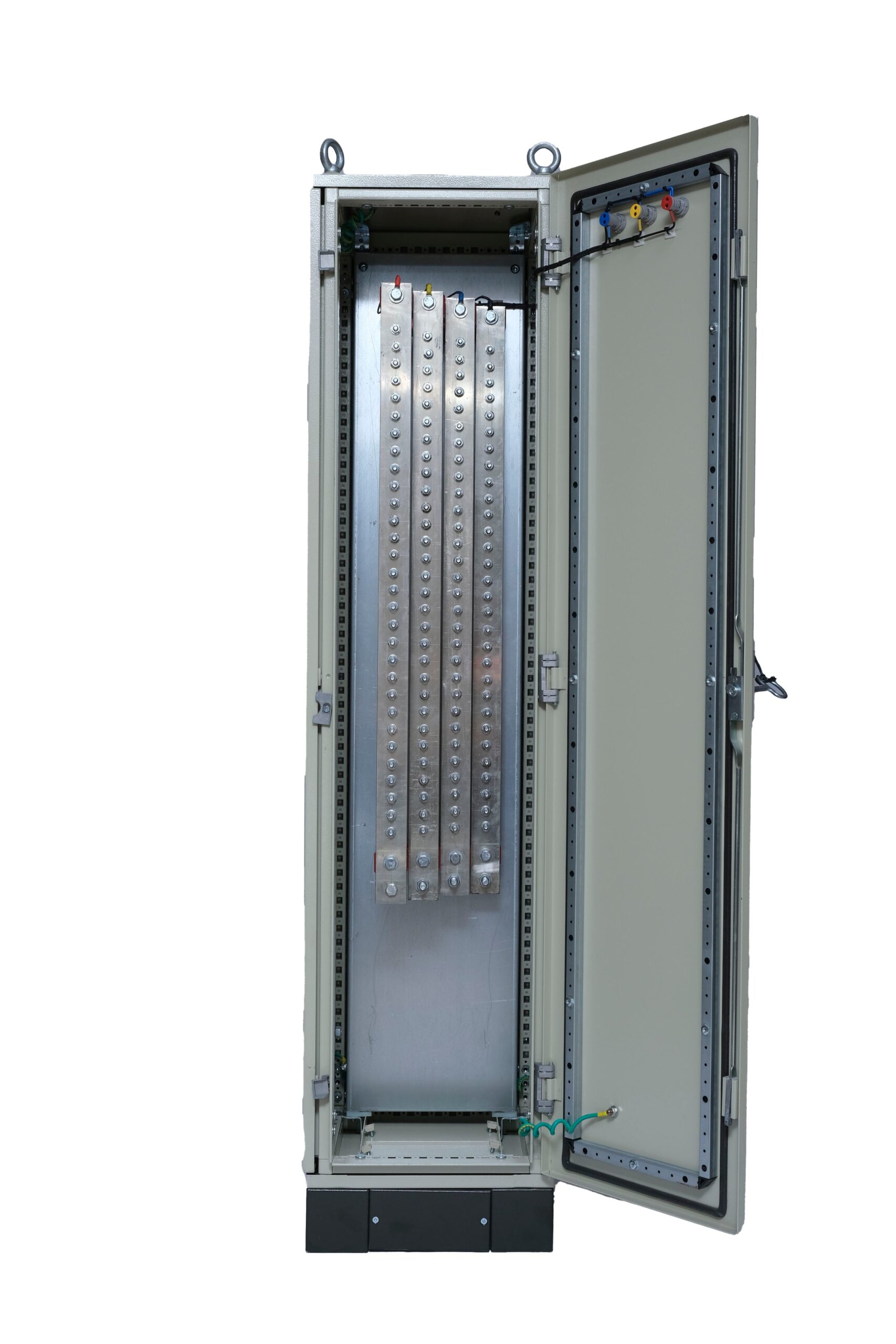

The Busbar Chambers is fabricated using sheet steel (CRCA) of 1.6mm thickness and epoxy powder coated to give superior & lasting finish. The busbar sections are made of ETP grade copper & dull tin plated and the busbar supports are made of DMC(Dough molding compound). The neutral busbar is fully rated. 1000A TPN Busbar Chamber is a set of busbar strips housed inside of a freestanding  enclosure designed for safe, reliable and economical distribution of high current to various loads. Additional Information Functional components Tinned Busbar strips for three phase and neutral Rated Voltage 400V Rated Current 1000A No. of outgoing ways 30 ways Features Readymade & customized solution for safe power distribution Modular/compact design provides economy of space and cost Simple and efficient system configuration Easy, flexible and time saving installation Shock proof design Elegant & sleek in appearance Busbars vertically oriented Short Circuit Withstand capacity 50kA per second Enclosure details Dimensions 400mm (length) * 1700mm (height) * 400mm (depth) Mounting Freestanding Cable entry Bottom IP Rating 55 Input/output Terminals M12 M8 Pilot lamp indications Provided on the Panel Door 3 Phase Supply Phase voltage readings Operating environment Vibration & Gas No strong vibrations and no harmful gases that may corrode the metallic parts and damage the insulation
