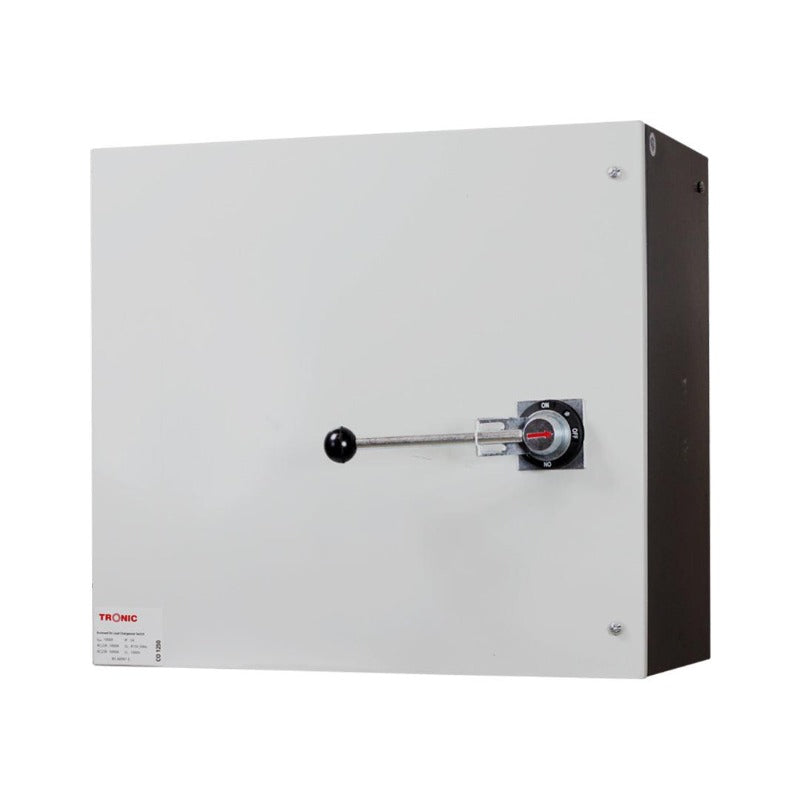

Tronic Onload Enclosed Manual Change Over 1250A

Name: Tronic Onload Enclosed Manual Change Over 1250A
Brand: Tronic
SKU: 76101
Availability: InStock

Brand:Tronic

In Stock

Sh 8,302,716

Wishlist

Add to Compare

Categories:Electrical Industrial Electrical Manual Changeover Switches Transfer & Changeover SwitchesTag:Tronic Brand: Tronic

TRONIC

Function: On Load manual changeover between 2 sources. Emergency Breaking Selection between two loads Safe isolation of downstream loads for maintenance purpose Specifications: Colour: Grey Amps: 250Amps Voltage: AC 415V Dimensions: Height 350mm x Width 455mm Material: Aluminium Additional Information: CRCA Sheet (Door 1.2 mm & Body 1.6mm) 63A to 800A CRCA Sheet (Door 1.6mm & Body 2.0mm)1000A to 3150A 2 External earthing points on each side Wall mounted with 4 bolts Door locking system allows opening of door only in OFF position Incoming & outgoing easily interchangeable at site Coating of epoxy polyester powder 70 micron Removable plate top & bottom Door with solid hinges Warranty: 1 Year
