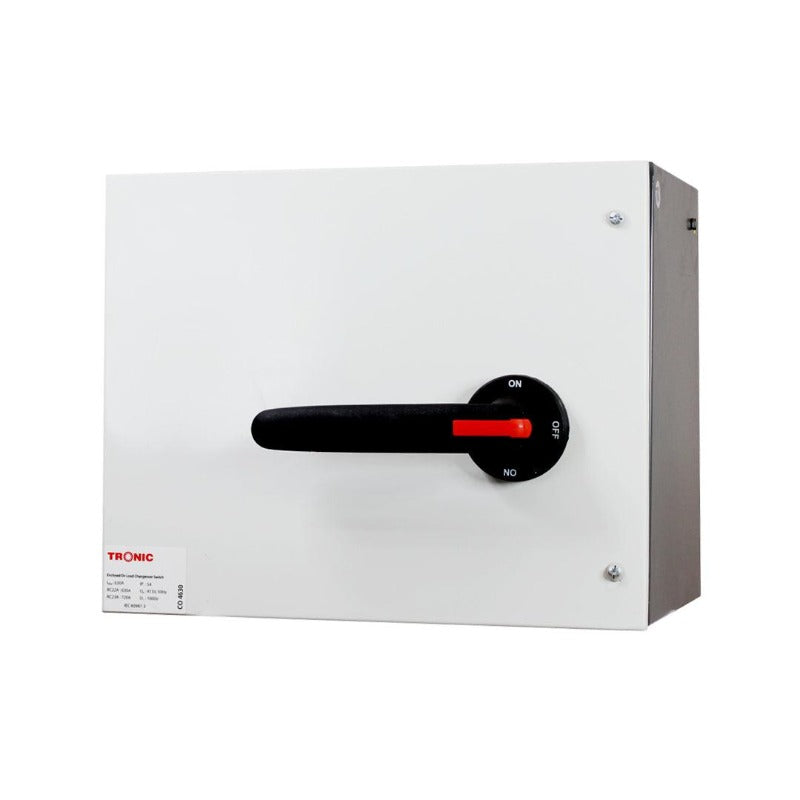

Tronic Onload Enclosed Manual Change Over 630A

Function: On Load manual changeover between 2 sources. Emergency Breaking Selection between two loads Safe isolation of downstream loads for maintenance purpose Specifications: Colour: Grey Amps: 630Amps Voltage: AC 415V Dimensions: Height 350mm x Width 455mm Material: Aluminium Additional Information: CRCA Sheet (Door 1.2 mm & Body 1.6mm) 63A to 800A CRCA Sheet (Door 1.6mm & Body 2.0mm)1000A to 3150A 2 External earthing points on each side Wall mounted with 4 bolts Door locking system allows opening of door only in OFF position Incoming & outgoing easily interchangeable at site Coating of epoxy polyester powder 70 micron Removable plate top & bottom Door with solid hinges Warranty: 1 Year
