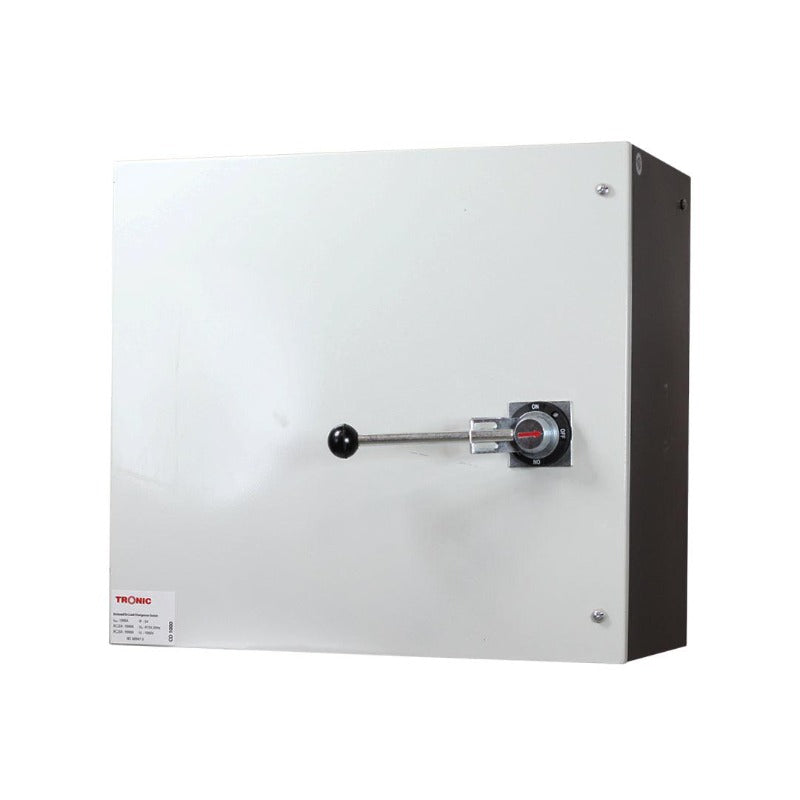

Tronic Rotary Changeover Switch 1000A
Sh 6,540,858
Function: On Load manual changeover between 2 sources. Emergency Breaking Selection between two loads Safe isolation of downstream loads for maintenance purpose Specifications: Colour: Grey Amps: 1000…
- Description
- Shipping
- Specifications
- Reviews (0)
- Questions & Answers
- Vendor Info
- More Products
- Product Enquiry
Function: On Load manual changeover between 2 sources. Emergency Breaking Selection between two loads Safe isolation of downstream loads for maintenance purpose Specifications: Colour: Grey Amps: 1000Amps Voltage: AC 415V Dimensions: Height 350mm x Width 455mm Material: Aluminium Additional Information: CRCA Sheet (Door 1.2 mm & Body 1.6mm) 63A to 800A CRCA Sheet (Door 1.6mm & Body 2.0mm)1000A to 3150A 2 External earthing points on each side Wall mounted with 4 bolts Door locking system allows opening of door only in OFF position Incoming & outgoing easily interchangeable at site Coating of epoxy polyester powder 70 micron Removable plate top & bottom Door with solid hinges Warranty: 1 Year
| Maker | Tronic |
|---|---|
| Model | CO 1000 |
| Product Type | Manual Changeover |
| Voltage | 415V |
| Current | 1000A |
| Colour | Grey |
| Certification | Ce |
| Detection Range | 350M |
