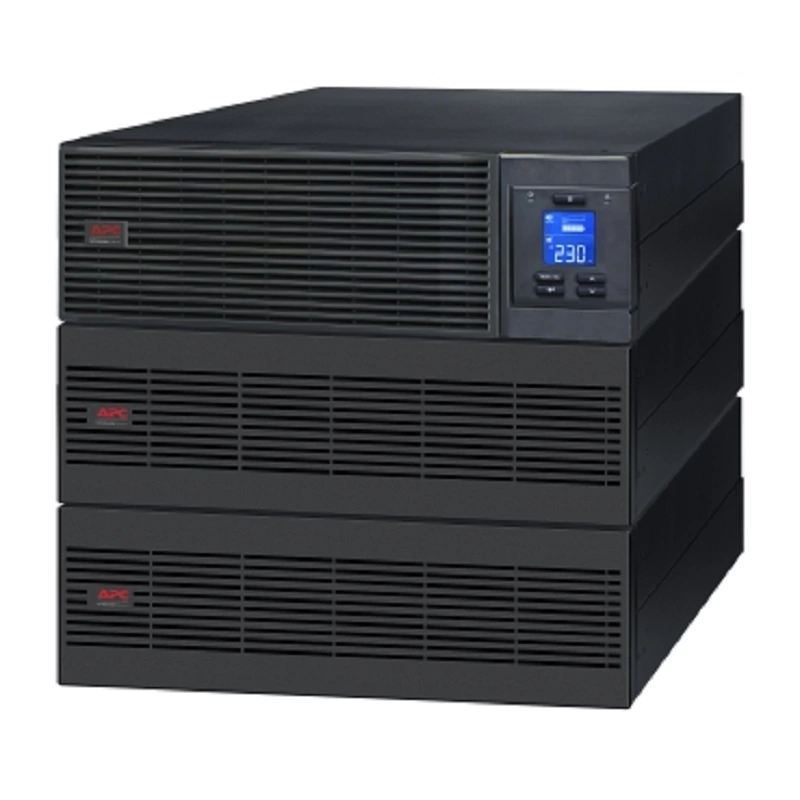

APC Easy UPS On-Line 15kVA/15kW Rackmount 9U 230V Intelligent Card Slot LCD W/RailKit SRV15KRILRK

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 15kVA double-conversion on-line 9U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) and 5-wire(3P+N+E) inputs, and 3-wire(1P+N+E) outlet. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

Features

• 15kVA/15kW double-conversion on-line pure sine wave 9U rackmount UPS
• High operating efficiency in energy-saving ECO mode
• Add up to 10 external battery packs (SRV120RLBP2-9A) for extended runtime

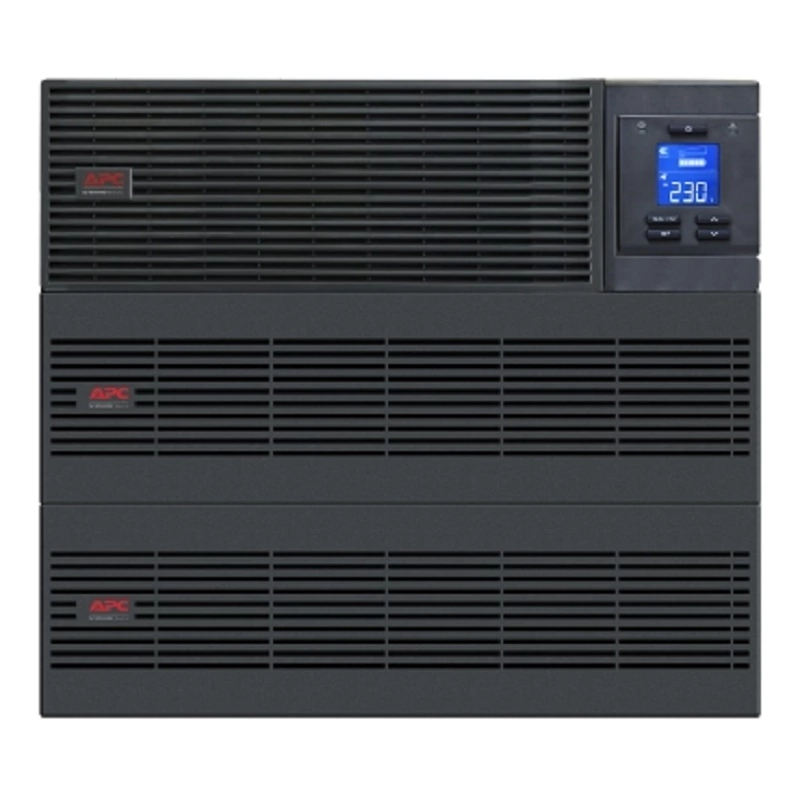

• Easy-to-read LCD interface for detailed and accurate information on UPS status
• Main Input Voltage: 230 V AC, 415 V AC
• Product or component type: Uninterruptible power supply (UPS)
• Other Input Voltage: 220 V, 230 V, 415 V
• Main Output Voltage: 230 V
• Other Output Voltage: 220 V, 240 V
• Rated power in W: 15000 W
• Rated power in VA: 15000 VA
• Output connector type: Hard wire 3-wire (1P + N + E) 1
• Number of rack unit: 9U
• Range of product: Easy UPS On-Line

Provided equipment

• 1 USB cable
• 1 RS-232 configuration cable

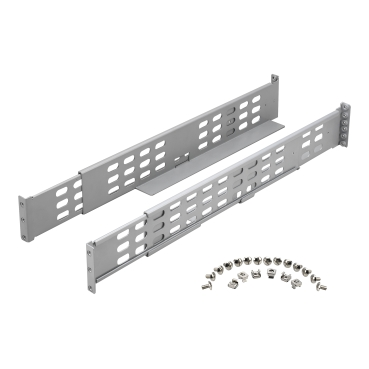

• 3 rack mounting brackets
• 3 stabilization/wall mounting feet
• 6 jumper bar
• 2 external battery pack
• 1 battery cable
• user manual

Batteries & Runtime

• Battery type: Lead-acid battery
• Battery voltage: +/- 120 V
• Number of battery filled slots: 0
• Number of battery free slots: 0
• Battery recharge time: 6 h
• Battery charger power: 2340 W rated

Physical

• Colour: Black (RAL 7010)
• Height: 39.3 cm
• Width: 43.8 cm
• Depth: 69.0 cm
• Product weight: 157 kg
• Mounting location: Front
• Mounting preference: No preference
• Mounting mode: Rack-mounted
• USB compatible: Yes
• Mounting position: Horizontal

Input

• Input voltage limits: 110…300 V half load, 176…300 V full load

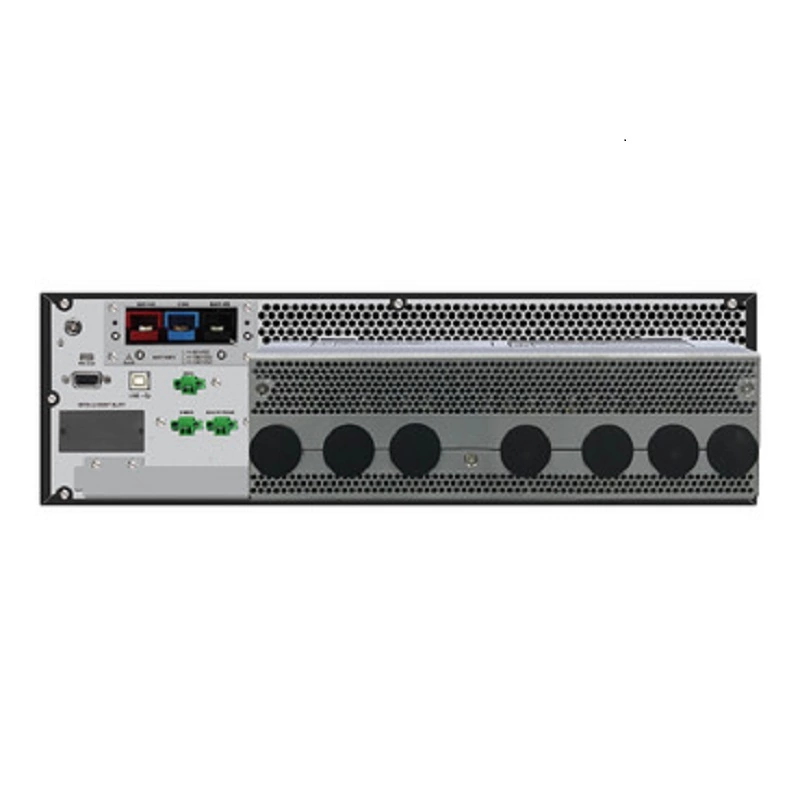

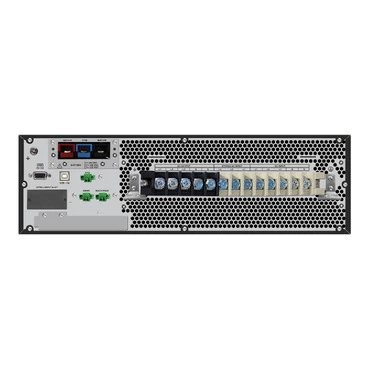

• Number of input connectors: 1 hard wire 3-wire (1P + N + E), 1 hard wire 5-wire (3P + N + E)
• Network frequency: 40…70 Hz auto sensing

Output

• Maximum configurable power in VA: 15000 VA
• Maximum configurable power in W: 15000 W
• Output frequency: 50/60 Hz +/- 3 Hz sync to mains
• Harmonic distortion: 2 %
• UPS type: Double conversion online
• Wave type: Sine wave
• Efficiency: 95 % (full load)
• Additional information: Configurable for 220 : 230 or 240 nominal output voltage
• Bypass type: Internal bypass (automatic and manual)
• Crest factor: 3 : 1

Environmental

• Ambient air temperature for operation: 0…40 °C
• Relative humidity: 0…95 % non-condensing
• Operating altitude: 0…3000 m
• Ambient air temperature for storage: -20…60 °C
• Storage Relative Humidity: 0…95 % non-condensing
• Storage altitude: 0…15000 m
• Acoustic level: 65 dBA
• Heat dissipation: 2503 Btu/h
• IP degree of protection: IP20
