Tronic Busbar Chamber 200A 6 Way

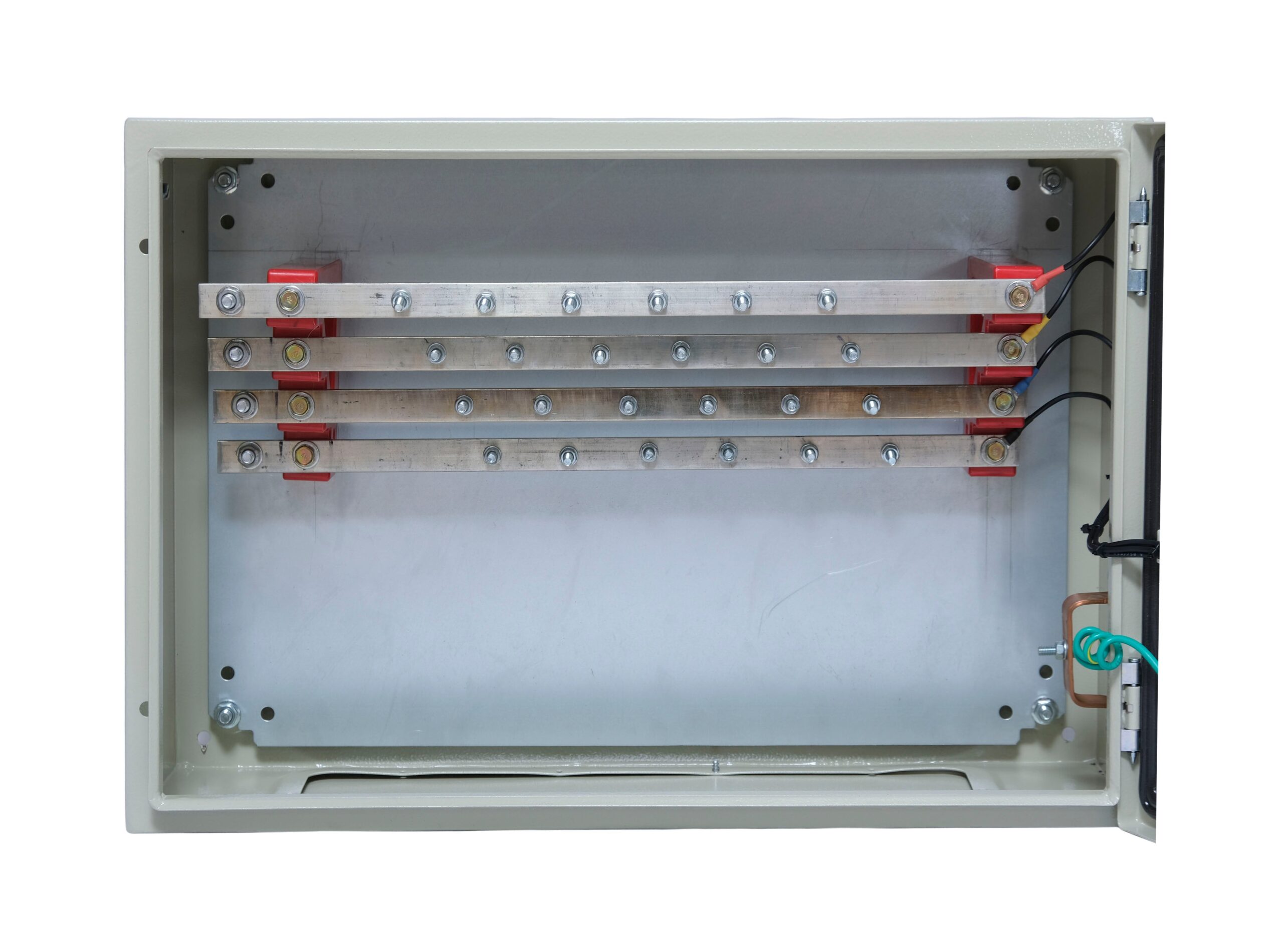

The Busbar Chambers is fabricated using sheet steel (CRCA) of 1.6mm thickness and epoxy powder coated to give superior & lasting finish. The busbar sections are made of ETP grade copper & dull tin plated and the busbar supports are made of DMC(Dough molding compound). The neutral busbar is fully rated. 200A TPN Busbar Chamber is a set of busbar strips housed inside of a freestanding  enclosure designed for safe, reliable and economical distribution of high current to various loads. Additional Information Functional components Tinned Busbar strips for three phase and neutral Rated Voltage 400V Rated Current 200A No. of outgoing ways 6 ways Features Readymade & customized solution for safe power distribution Modular/compact design provides economy of space and cost Simple and efficient system configuration Easy, flexible and time saving installation Shock proof design Elegant & sleek in appearance Busbars horizontally oriented Enclosure details Dimensions 600mm (length) * 400mm (height) * 200mm (depth) Mounting Wall-mountable Cable entry Bottom IP Rating 55 Input/output Terminals M8 M6 Pilot lamp indications Provided on the Panel Door 3 Phase Supply Phase voltage readings Operating environment Vibration & Gas No strong vibrations and no harmful gases that may corrode the metallic parts and damage the insulation
